BOTTLE CAPPING MACHINE
The Bottle Capping Machine is a reliable and efficient solution designed for sealing bottles with high precision and speed. It is suitable for applying screw caps, ROPP caps, flip-top caps, and press-on caps on plastic or glass bottles. The machine ensures tight, leak-proof sealing and consistent torque control, making it ideal for industries such as food & beverage, pharmaceuticals, cosmetics, chemicals, and FMCG. Available in semi-automatic and fully automatic models, it improves productivity while reducing manual effort and ensuring professional packaging quality.
Product Overview

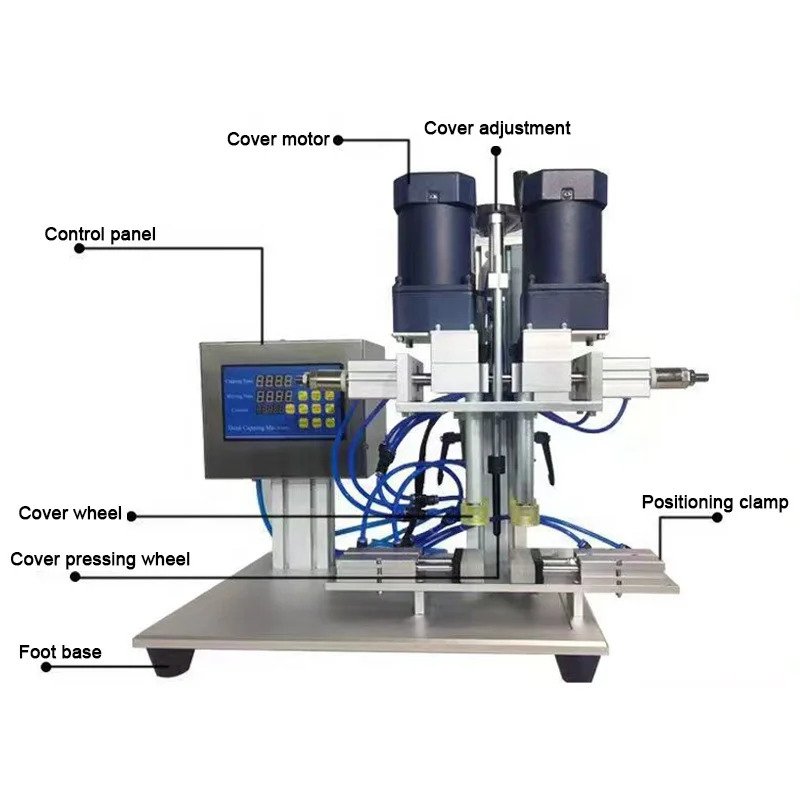

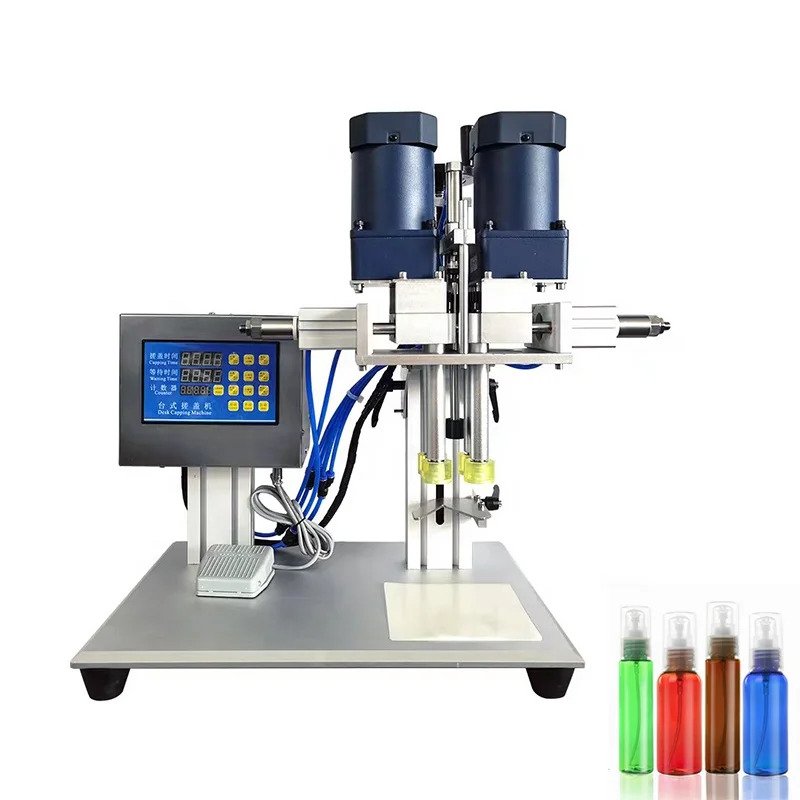

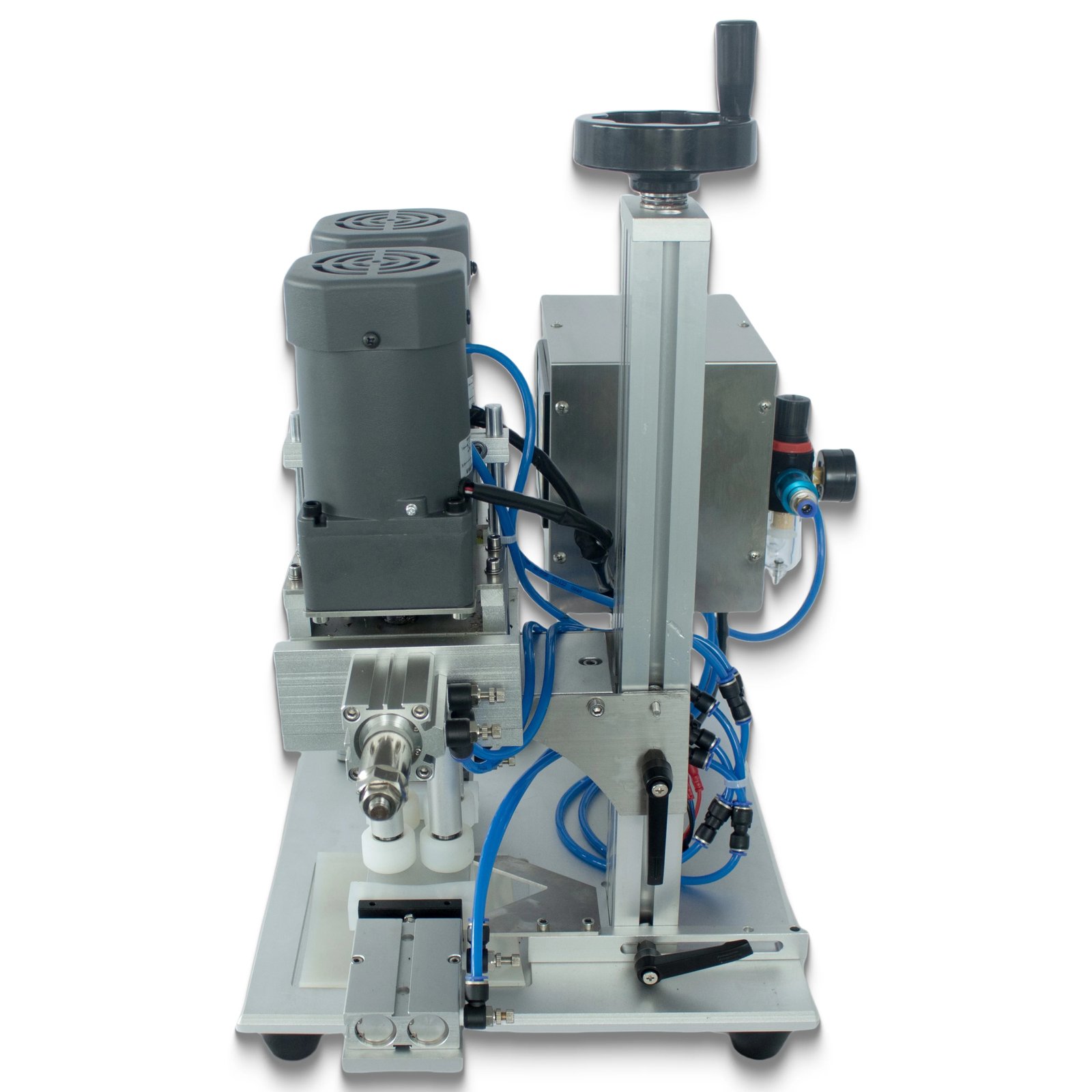

The Bottle Capping Machine is a high-performance packaging solution designed for accurate and secure sealing of bottles across various industries. It is engineered to apply different types of caps such as screw caps, ROPP caps, press-on caps, flip-top caps, and lug caps with consistent torque and leak-proof sealing.
This machine is available in semi-automatic and fully automatic models, making it suitable for small, medium, and large-scale production units. The automatic models are equipped with a conveyor system, cap feeding mechanism, and torque-controlled capping heads to ensure smooth and continuous operation. Semi-automatic versions are compact, easy to operate, and ideal for low to medium production requirements.
Built with a stainless steel (SS 304) body, the machine ensures durability, corrosion resistance, and compliance with hygiene standards. The precision-engineered capping heads provide uniform tightening without damaging caps or bottles. Adjustable height and torque settings allow the machine to handle different bottle sizes and cap diameters efficiently.
The Bottle Capping Machine is widely used in food & beverage, pharmaceutical, cosmetic, chemical, and FMCG industries for sealing products such as water bottles, syrups, edible oils, juices, sauces, shampoos, detergents, medicines, and more.
Specifications
| Cap Type | Screw Cap / Flip Cap / Pump Cap (customizable) |
| Bottle Type | Plastic / Glass Bottles |
| Plastic / Glass Bottles | 20 – 50 mm (customizable) |
| Bottle Height | 50 – 300 mm (adjustable) |
| Production Speed | 20 – 40 Bottles / Minute* |
| Operation Mode | Foot Switch / Automatic Cycle |
| Driven Type | Electric Motor Driven |
| Control System | Digital Control Panel |
| Torque Control | Adjustable |
| Body Material | Stainless Steel (SS 304) |
| Power Supply | 220 V AC, 50 Hz |
| Power Consumption | Approx. 0.5 – 1 HP |
| Machine Dimension | Approx. 600 × 400 × 700 mm |
| Machine Weight | Approx. 35 – 50 KG |
