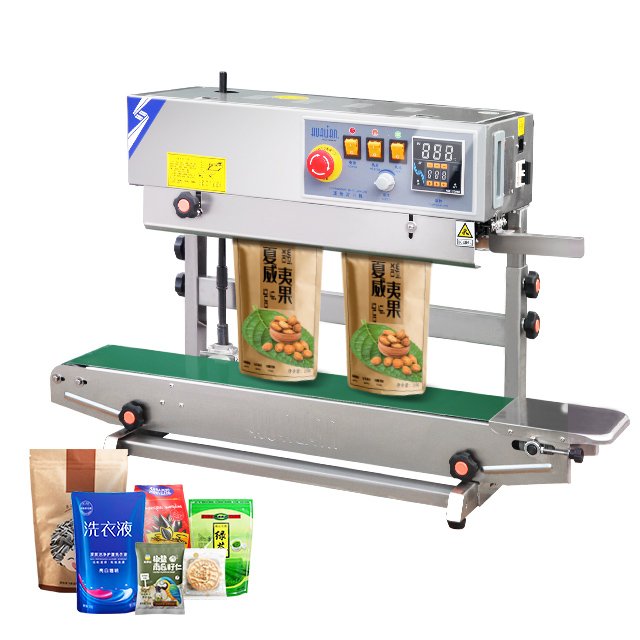

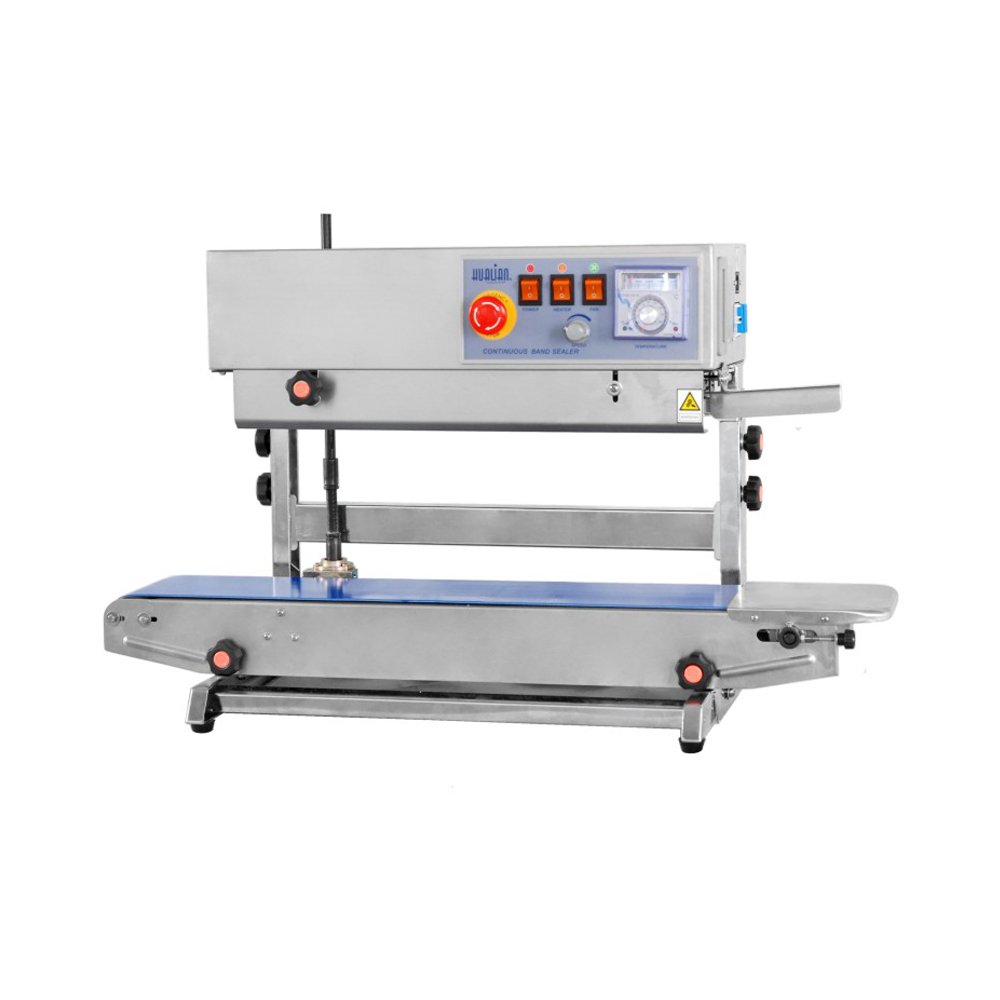

SCIENCEWAY 5KG BANDSEALER MACHINE
The Scienceway 5 kg Band Sealer is a semi-automatic horizontal sealing machine designed for efficient, high-speed sealing of plastic, laminated, or foil pouches up to 5 kg in weight.
Product Overview
The Scienceway 5 kg Band Sealer is a semi-automatic horizontal sealing
machine designed for efficient, high-speed sealing of plastic, laminated, or
foil pouches up to 5 kg in weight. It features a continuous band sealing system
that ensures uniform and airtight seals, ideal for packaging in food,
pharmaceutical, chemical, and agricultural industries. The machine is equipped
with adjustable temperature and speed controls, enabling compatibility with
various pouch materials and thicknesses. Built with a durable metal body, it
offers reliable performance, easy operation, and low maintenance, making it
suitable for small to medium-scale production environments.
Specifications
| Machine Type | Vertical Continuous Band Sealer |
| Pouch Capacity | Up to 5 kg per pouch |
| Sealing Width | Approx. 10–12 mm |
| Sealing Speed | 0 – 12 m/min (stepless adjustable) |
| Temperature Range | 0 – 300 °C, PID digital control |
| Power Supply | 220 V AC, 50 Hz |
| Power Consumption | Approx. 500–750 W |
| Body Material | Mild Steel (powder coated), Stainless Steel optional |
| Automation Grade | Semi-Automatic |

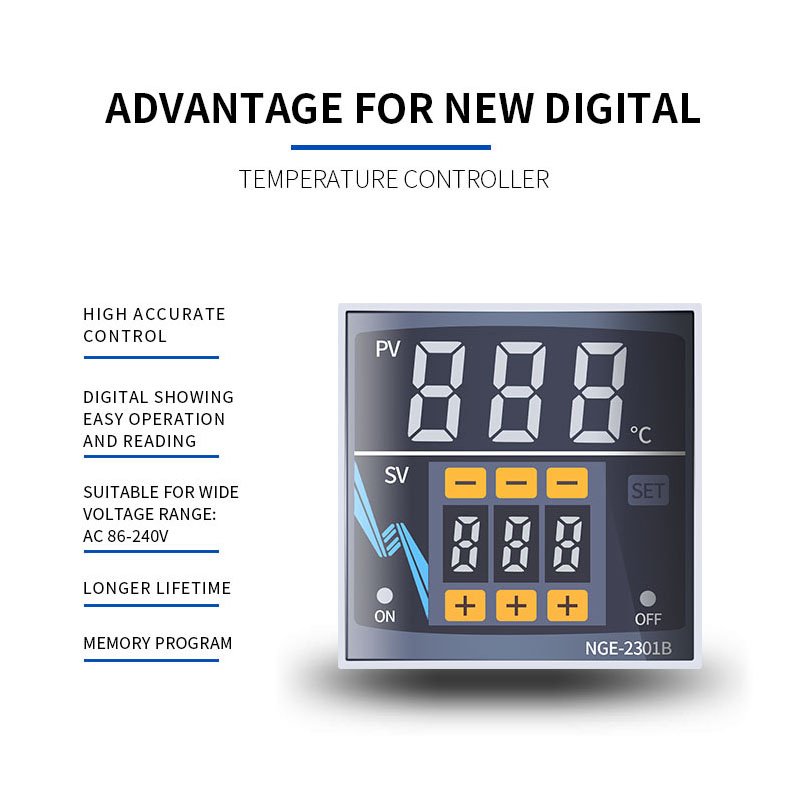

| Control System | Digital PID controller + speed knob |
| Cooling System | Integrated air cooling |
| Net Weight | Approx. 30–40 kg |
| External Dimensions (L×W×H) | Approx. 844 × 380 × 570 mm |
| Applicable Materials | LDPE, HDPE, BOPP, laminated films, foil pouches |
| Typical Applications | Food, agriculture, pharmaceuticals, chemicals |
| Optional Features | Conveyor-height adjustment, embossing coder, SS frame |
