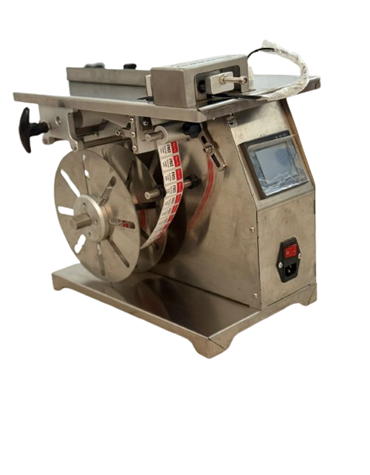

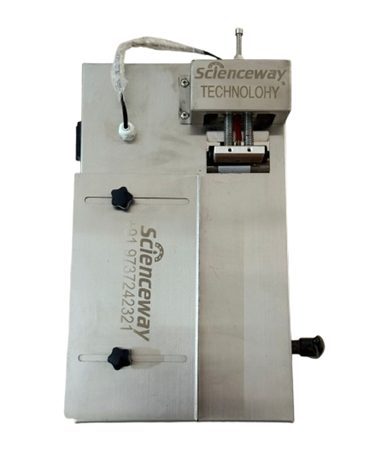

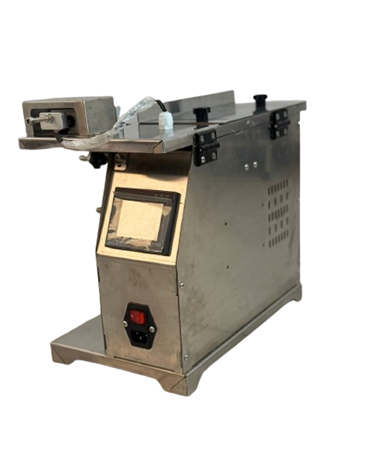

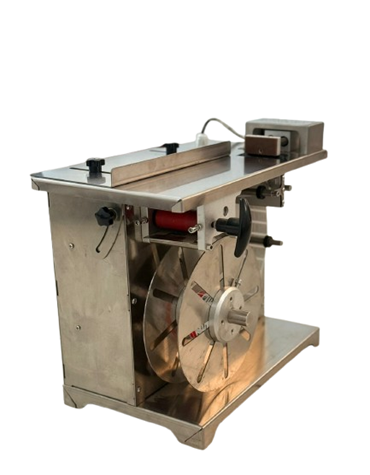

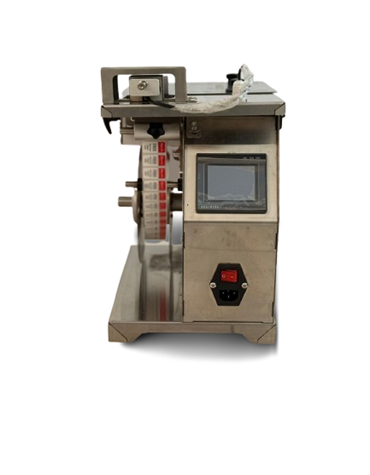

SCIENCEWAY CORNER LABELING MACHINE

The SCIENCEWAY Corner Labeling Machine is a precision-engineered labeling solution designed for applying labels to the corners of square or rectangular products such as cartons, boxes, and folded packaging.

Product Overview

The SCIENCEWAY Corner Labeling Machine is a precision-engineered labeling solution designed for applying labels to the corners of square or rectangular products such as cartons, boxes, and folded packaging. Ideal for tamper-evident or security label applications, it applies labels across adjacent surfaces (e.g., front + side or top + side) in a single pass with high accuracy.

Equipped with a high-sensitivity sensor system, adjustable guide rails, and an intuitive touch control interface, this machine ensures consistent label placement even at high speeds. It supports both single- and dual-corner labeling and integrates seamlessly into existing production lines for use in industries such as pharmaceuticals, cosmetics, electronics, and food packaging.

Specifications
Labeling Type Corner labeling (e.g., top-front, side-front, L-shape)
Applicable Products Cartons, boxes, folded boxes, square containers
Label Size Range Length: 20–150 mm; Width: 15–100 mm
Product Size Range L: 40–300 mm; W: 30–200 mm; H: 20–150 mm
Labeling Accuracy ±1.0 mm
Labeling Speed 20–60 pieces per minute (depending on product size)
Label Roll Diameter Outer: Max 300 mm; Inner core: 76 mm
Control System PLC with touch screen interface
Sensor Type Optical fiber and photoelectric sensors
Conveyor Material Industrial-grade anti-slip belt with stainless steel
Power Supply AC 220V / 50–60 Hz
Power Consumption Approx. 1.2 kW
Machine Dimensions Approx. 1800 × 800 × 1500 mm (L×W×H)
Net Weight ~180–220 kg
