SCIENCEWAY HANDHELD INKJET PRINTER 100MM

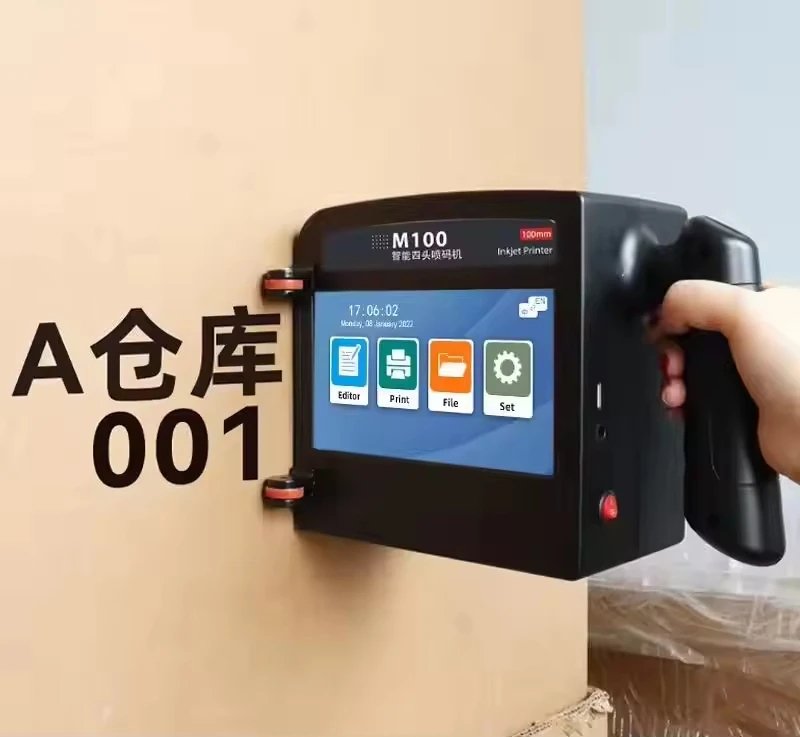

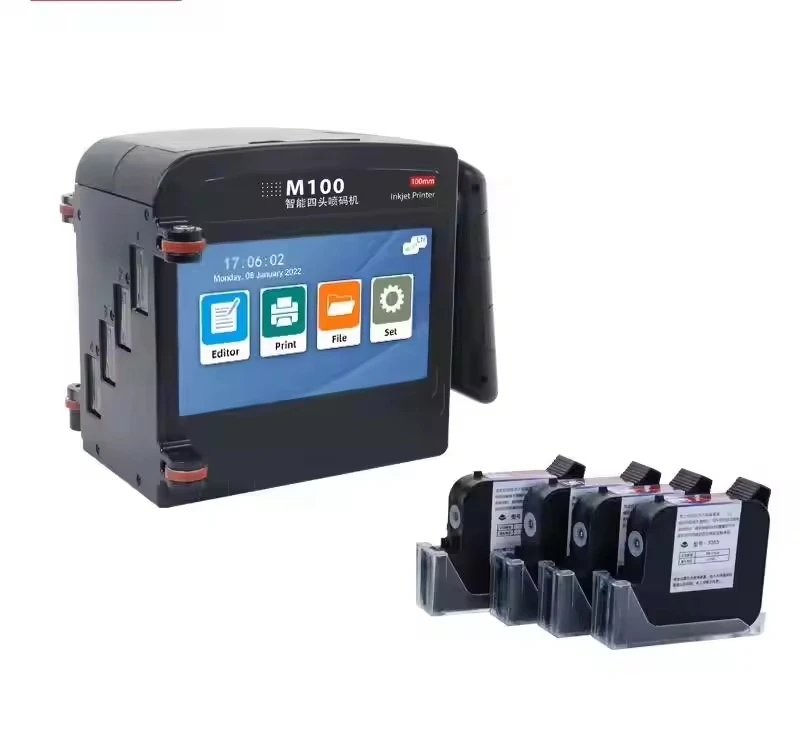

The Handheld Inkjet Printer 100mm is a high-performance, industrial-grade large character printer designed for applications requiring extra-wide marking.
Product Overview
The Handheld
Inkjet Printer 100mm is a high-performance, industrial-grade large
character printer designed for applications requiring extra-wide marking.
With a maximum print height of 100mm, it is ideal for printing large
logos, bold text, barcodes, QR codes, batch codes, and other key information on
oversized surfaces such as cartons, sacks, wooden crates, pipes,
metal sheets, and large packaging materials.
This
printer features multi-head thermal inkjet (TIJ) technology, seamlessly
combining multiple print heads to produce sharp, high-resolution prints
up to 600 DPI. Built with a robust metal body, it withstands
harsh industrial environments and is perfectly suited for heavy-duty, long-hour
operations.
The integrated 5-inch (or larger) color touchscreen provides an intuitive user interface for message creation and on-device editing. Paired with a high-capacity rechargeable battery, the printer ensures 6–8 hours of continuous cordless use, making it a reliable choice for warehouses, logistics hubs, and manufacturing units.
Specifications
| Print Height | Up to 100mm (using 4 combined TIJ heads) |
| Printing Technology | TIJ (Thermal Inkjet Technology) – Multi-head modular system |
| Ink Type | Solvent-based / Water-based / UV ink (depending on application) |
| Ink Colors Available | Black, Red, Blue, Green, White, Yellow (depends on cartridge type) |
| Body Material | Full Metal Body – Industrial-grade aluminum alloy or steel |
| Display | 5-inch or larger Color Touchscreen |
| Print Resolution | Up to 600 DPI |
| Print Content | Text, Date, Time, Serial Number, Barcodes (EAN, Code128, Code39), QR Codes, Logos |
| Printing Distance | 2 – 5 mm optimal distance from printing surface |
| Message Storage | Up to 1000+ messages (internal memory) |
| Multi-line Printing | Supported (depending on font size and layout) |
| Battery Type | High-capacity Rechargeable Lithium Battery (4000–5000 mAh) |
| Battery Backup | 6–8 hours continuous printing; 24+ hours standby |
| Charging Time | Approx. 3 – 4 hours |
| Connectivity | USB 2.0, U-disk input; Optional: Wi-Fi, Bluetooth |
| Data Input Methods | On-screen keyboard, USB keyboard, U-disk logo import |
| Surface Compatibility | Carton, Wood, Plastic, Metal, Fabric, Pipe, Cable, Sacks, Glass, Film |
| Print Direction | 360° adjustable (side, top, bottom surfaces) |
| Operating Temperature | 0°C to 45°C |
| Humidity Range | 10 – 80% RH (non-condensing) |
| Weight | Approx. 1.8 – 2.5 kg depending on build and battery size |
| Cartridge Capacity | Standard 42ml per head; total capacity depends on head configuration |
| Accessories Included | Charger, USB Cable, Multiple Ink Cartridges, Positioning Jig, User Manual |
