SCIENCEWAY HANDHELD INKJET PRINTER 50MM
The Handheld Inkjet Printer 50mm is a high-capacity, portable printing device designed for industrial applications that require large-format printing.
Product Overview
The Handheld
Inkjet Printer 50mm is a high-capacity, portable printing device
designed for industrial applications that require large-format printing.
With a maximum print height of 50mm, it is ideal for bold, clear marking
on large surfaces such as cartons, sacks, pipes, wooden crates, metal
sheets, and plastic bags.
Powered
by advanced multi-head thermal inkjet (TIJ) technology, this printer
delivers sharp and high-resolution prints of barcodes, QR codes, logos,

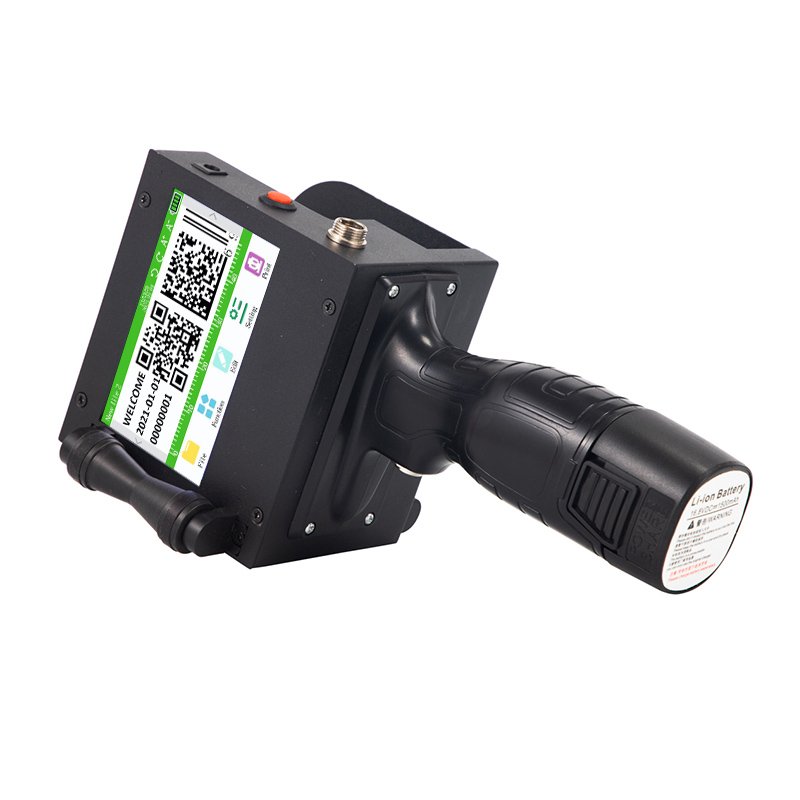

batch numbers, expiry dates, and serial codes. Its user-friendly touchscreen
interface allows quick message setup, customization, and editing without
the need for a computer.
The
printer supports a wide variety of solvent and water-based inks, making
it compatible with both porous and non-porous surfaces. Its rechargeable
battery provides 6–8 hours of continuous operation, ensuring
mobility and convenience on production lines, in warehouses, and during field
use.
Specifications
| Print Height | Up to 50mm (with multi-nozzle configuration) |
| Printing Technology | TIJ (Thermal Inkjet Technology) – Multi-head system |
| Ink Type | Solvent-based / Water-based / UV ink (optional) |
| Ink Colors Available | Black, Red, Blue, Green, White, Yellow (depends on cartridge type) |
| Body Material | Metal Body – Aluminum Alloy / Stainless Steel casing |
| Display | 4.3-inch or larger Color Touchscreen |
| Resolution | Up to 600 DPI |
| Print Content | Text, Barcode (Code128, EAN, Code39), QR Code, Logo, Date, Time, Serial Numbers |
| Printing Distance | 2 – 5 mm (optimal distance from the surface) |
| Message Storage | Up to 1000 messages (internal memory) |
| Multi-line Printing | Supported (up to 10 lines depending on font size and layout) |
| Battery Type | Rechargeable 2600–3000 mAh Lithium-ion Battery |
| Battery Backup | 6–8 hours continuous printing; 24+ hours standby |
| Charging Time | Approx. 2.5 – 3 hours |
| Interface / Connectivity | USB 2.0, U-Disk Import; Optional: Wi-Fi, Bluetooth |
| Data Input Methods | Touchscreen, USB keyboard, U-disk logo import |
| Surface Compatibility | Carton, Wood, Plastic, Metal, Glass, Pipe, Cable, Sacks, Aluminum Foil, Film |
| Print Direction | 360° Printing (adjustable head for vertical or horizontal surfaces) |
| Operating Temperature | 0°C – 45°C |
| Humidity Range | 10 – 80% RH (non-condensing) |
| Weight | Approx. 1.2 – 1.5 kg (depends on model and battery size) |
| Cartridge Capacity | 42ml standard per cartridge (per nozzle block) |
| Accessories Included | Charger, USB Cable, Ink Cartridge, Positioning Plate, Cleaning Tools, Manual |
