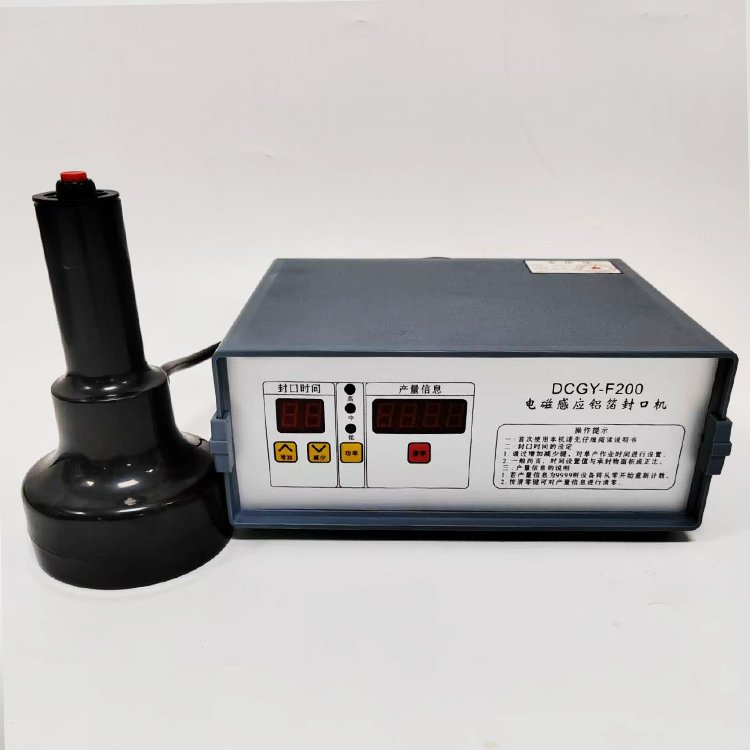

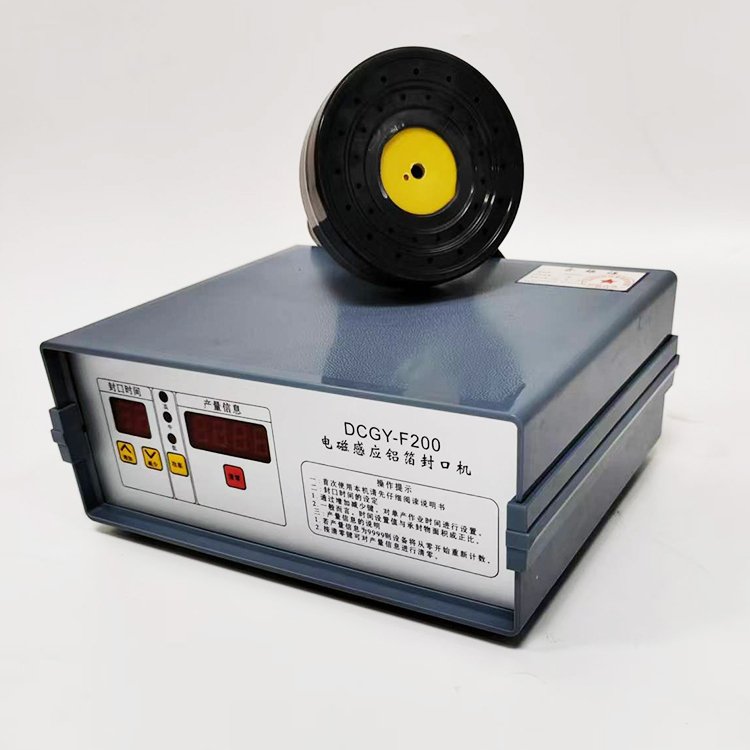

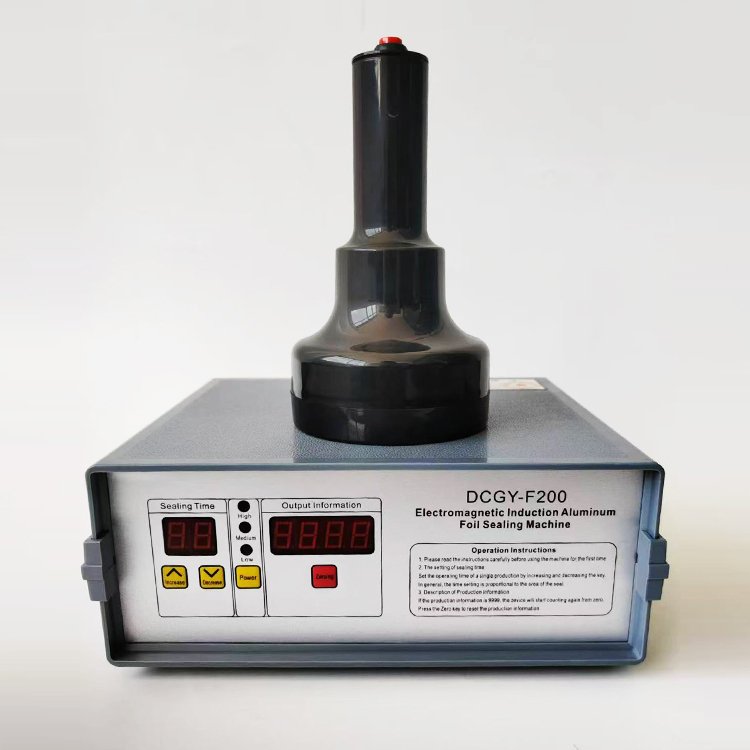

SCIENCEWAY INDUCTION SEALING MACHINE DCGYF200C

The Scienceway DGYF 200C is a handheld, semi automatic induction sealer, meticulously engineered to deliver secure, leak-proof, and tamper-evident foil seals on capped containers of various materials—including PET, PP, PE, and glass bottles.

Product Overview

The Scienceway DGYF‑200C is a handheld, semi‑automatic induction sealer, meticulously engineered to deliver secure, leak-proof, and tamper-evident foil seals on capped containers of various materials—including PET, PP, PE, and glass bottles. Leveraging non-contact electromagnetic induction, it melts the aluminum-foil liner within the cap to create a clean and hermetic seal without affecting the container’s contents.

Ideal for small-to-mid scale production in pharmaceuticals, food & beverages, cosmetics, and chemicals, its compact, lightweight handheld design ensures user-friendly portability, whether used inline or in batch setups. Adjustable sealing settings and in-built overheat safety provide consistent performance and reliability.

With no moving parts contacting the container, the DGYF‑200C offers clean, hygienic sealing every time—requiring only standard induction liners and no adhesives or mechanical friction. It’s an efficient, cost-effective sealing solution suited for modern packaging operations.

Specifications
Model DGYF 200 (variant C)
Cap Diameter Range 20 mm – 80 mm
Sealing Method Electromagnetic induction (foil liner sealing)
Power Supply AC 220 V / 50 Hz (also supports 110 V / 60 Hz)
Power Consumption Approx. 500 W
Sealing Time (Adjustable) 0.5 – 2.5 seconds per bottle
Output / Speed Up to ~50 bottles per minute (depends on operator)
Capacity Rate 30–50 pcs/min
Cooling Method Air cooling via integrated vents
Machine Weight Approx. 4–5.5 kg
Machine Dimensions ~280 × 230 × 115 mm (or ~340 × 290 × 130–150 mm)
Operation Mode Handheld manual sealing head with digital timer control
Materials Compatibility PET, PE, PP, PVC, glass bottles with aluminum foil liners
