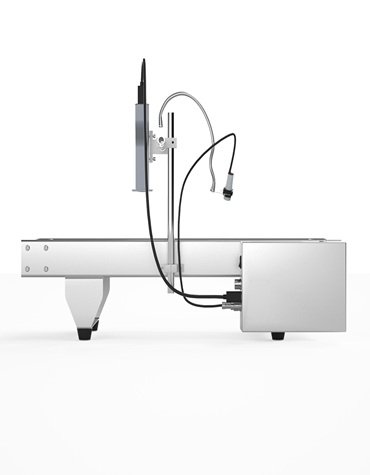

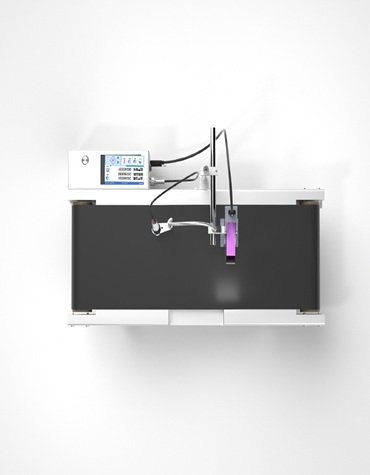

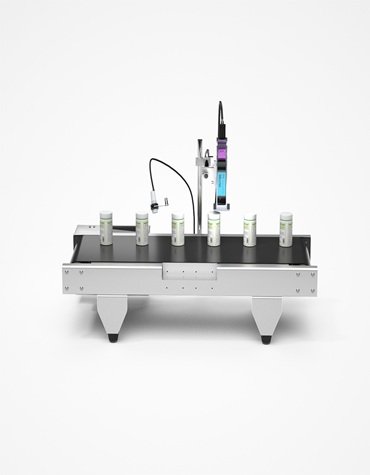

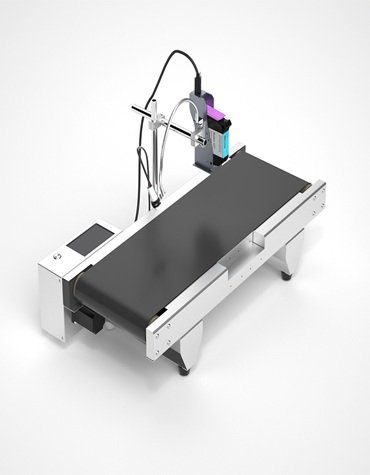

SCIENCEWAY MINI TIJ PRINTER WITH CONVEYOR BELT
The SCIENCEWAY Mini TIJ Printer with Conveyor Belt is a compact, all-in-one coding solution designed for small to medium-scale production environments.
Product Overview
The SCIENCEWAY Mini TIJ Printer with Conveyor Belt is a
compact, all-in-one coding solution designed for small to medium-scale
production environments. This integrated system combines a high-resolution
thermal inkjet printer with a stainless-steel conveyor belt, providing a
ready-to-use platform for efficient, continuous marking. It is ideal for
printing batch codes, dates, QR codes, barcodes, logos, and text on products
like bottles, boxes, pouches, and packaging materials.
Featuring a user-friendly touchscreen interface, the printer supports multi-language operation and delivers clean, maintenance-free printing using HP TIJ 2.5 cartridges. The adjustable conveyor speed ensures accurate synchronization with printing, making it suitable for pharmaceuticals, cosmetics, food, and electronics packaging.
Specifications
| Print Technology | Thermal Inkjet (TIJ 2.5 – HP Cartridge) |
| Print Height | Up to 12.7 mm |
| Print Resolution | 40–600 dpi (adjustable) |
| Print Speed | Up to 60–90 meters per minute (depending on dpi) |
| Print Content | Text, logos, barcodes, QR codes, date, time, serial numbers |
| Ink Compatibility | Water-based, solvent-based, UV inks |
| Ink Colors | Black, red, blue, white, green, yellow |
| Display | 4.3″ or 5″ touchscreen interface |
| Data Interface | USB input, optional Wi-Fi |
| Supported Formats | JPG, BMP, PNG for logos |
| Message Storage | 1000+ messages (internal + USB) |
| Language Support | English, Arabic, French, Spanish, Chinese, etc. |
| Power Supply (Printer) | AC 100–240V / 50–60 Hz |
| Material | Stainless Steel Frame with Anti-Slip Belt |
| Belt Width | ~200 mm |
| Conveyor Speed | Adjustable (0–28 meters per minute) |
| Load Capacity | Up to 15–20 kg (varies by model) |
| Height Adjustment | Yes (manual screw lift) |
| Power Supply | AC 220V / 50–60 Hz |
| Overall Dimensions | Approx. 1200 × 250 × 750 mm (L×W×H) |
