SCIENCEWAY SINGLE HEAD LIQUID FILLING MACHINE 50 TO 500ML

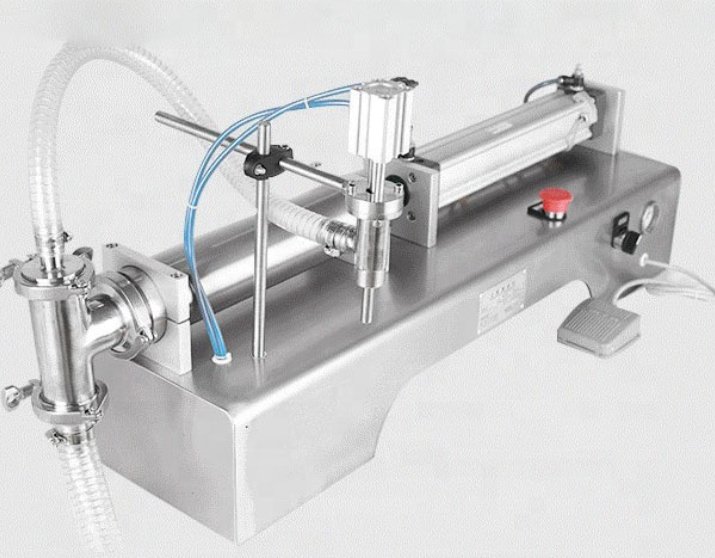

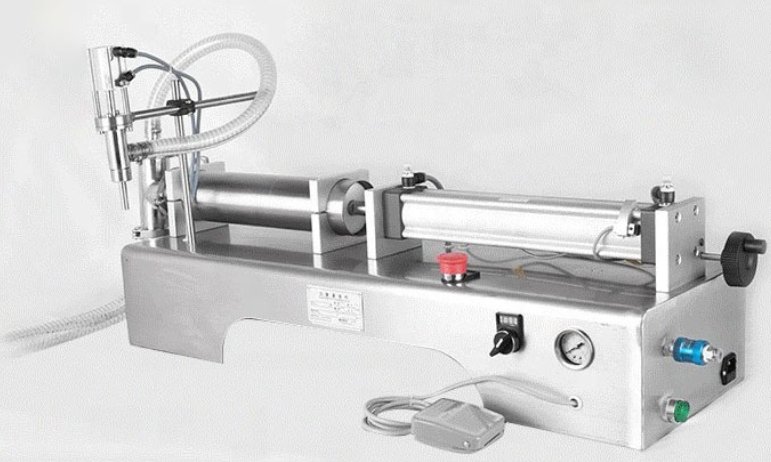

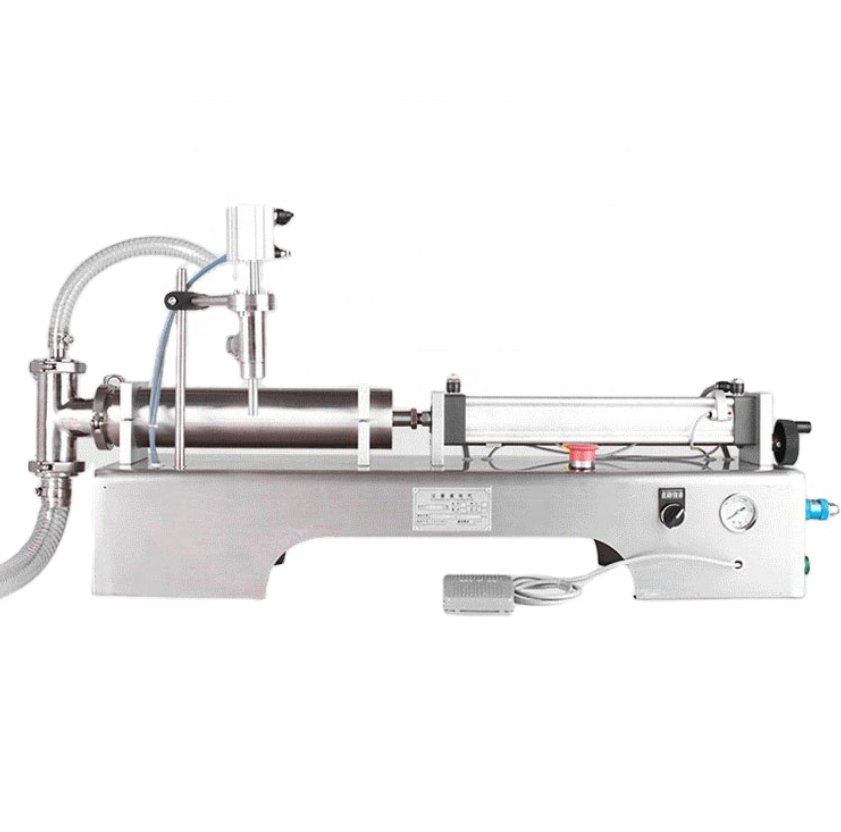

The Scienceway Single Head Liquid Filler is a semi automatic pneumatic piston-driven system, engineered for precision, hygiene, and ease of use. Featuring a single anti-drip nozzle, it delivers accurate and consistent fills in liquid volumes from 50 ml to 500 ml.

Product Overview

The Scienceway Single‑Head Liquid Filler is a semi‑automatic pneumatic piston-driven system, engineered for precision, hygiene, and ease of use. Featuring a single anti-drip nozzle, it delivers accurate and consistent fills in liquid volumes from 50 ml to 500 ml.

Constructed with food-grade stainless steel (SS 304) and PTFE contact parts, the machine meets GMP and sanitary standards, making it ideal for applications in pharmaceuticals, cosmetics, personal care, food & beverage, and agrochemical industries.

Designed for flexibility, it offers both manual foot-pedal operation and semi-automatic timed cycles, allowing seamless transitions between small batch runs and more continuous production workflows.

Engineered for easy cleaning and minimal maintenance, this compact and robust filling solution is compatible with a range of liquid viscosities—from water-like fluids to light oils and shampoos.

Specifications
Model Semi Automatic Liquid Filling Machine
Filling Volume 50 ml – 500 ml (per single nozzle head)
Number of Nozzles 1 (Single Head)
Filling Mechanism Pneumatic piston-type volumetric dispensing
Filling Accuracy ±1.0% error margin
Output / Speed Approx. 600 – 1,800 bottles per hour
Material Tank Capacity ~35 L hopper
Contact Materials SS 304 / SS 316 stainless steel & PTFE
Air Pressure Required ~0.6 – 0.8 MPa
Power Supply 220 V AC (standard single-phase)
Operation Mode Manual (foot pedal) & Semi Automatic timed cycle
Machine Weight Approx. 30 kg
Filling Accuracy ±1%
Anti-drip Design Yes, to prevent leakage and wastage
Cleaning & Maintenance Modular components for easy disassembly and sanitization
