SCIENCEWAY STACKER CONVEYOR BELT
The Stacker Conveyor Belt is a robust and efficient material handling system designed for lifting, stacking, and transporting bulk materials like sand, coal, cement, grains, and aggregates. It offers high efficiency, smooth operation, and adjustable height, making it ideal for warehouses, construction sites, mining, and industrial applications.
Product Overview
The Stacker Conveyor Belt is a versatile and reliable material handling solution designed for efficient loading, stacking, and transportation of bulk materials. Built with a heavy-duty frame and a high-strength belt, it is ideal for industries such as construction, mining, agriculture, cement plants, warehouses, and logistics centers.
Equipped with adjustable height and length options, the stacker conveyor can easily transfer materials to different levels, stockpile locations, or storage areas. Its smooth belt movement reduces material spillage and ensures safe, continuous, and high-capacity operation.
The conveyor is designed for easy mobility with wheel-mounted or fixed structures, making it suitable for on-site operations as well as permanent installations. Depending on application requirements, the system can be customized in terms of belt width, speed, load capacity, and stacking height.
Specifications
| Belt Width | 300 mm – 1200 mm (customizable) |
| Conveyor Length | 1 m – 20 m (as per requirement) |
| Belt Speed | 0.1 – 2.0 m/s (VFD controlled) |
| Load Capacity | Up to 2000 TPH (model dependent) |
| Discharge Height | Adjustable: 0.5 m – 10 m+ |
| Frame Material | Heavy-duty Mild Steel / Stainless Steel |
| Belt Material | Rubber, PVC, EP or Chevron (as per material) |

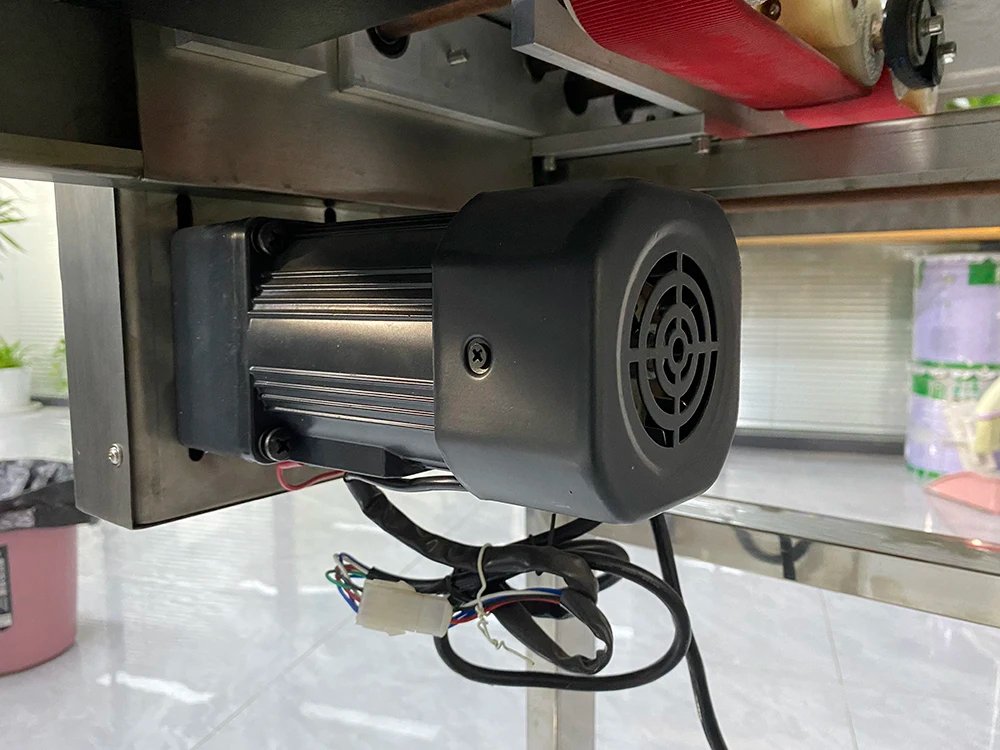

| Drive Motor | 0.5 kW – 15 kW (3-Phase / Single Phase) |
| Power Supply | 220V / 380–440V, 50/60 Hz |
| Inclination Angle | 0° – 30° (higher with cleated belt) |
| Mobility | Fixed / Portable with wheels |
| Safety Features | Emergency stop, belt guards, alignment sensors |
