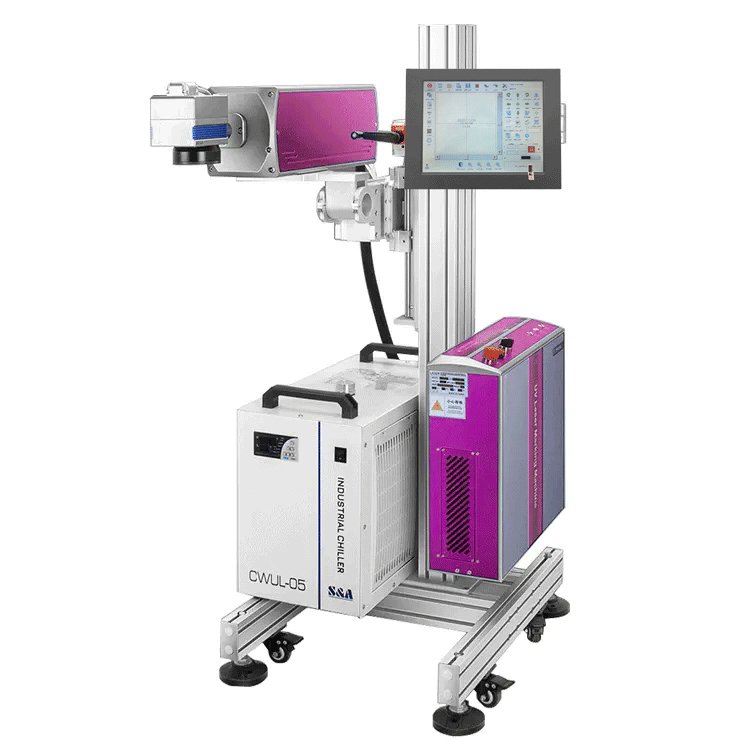

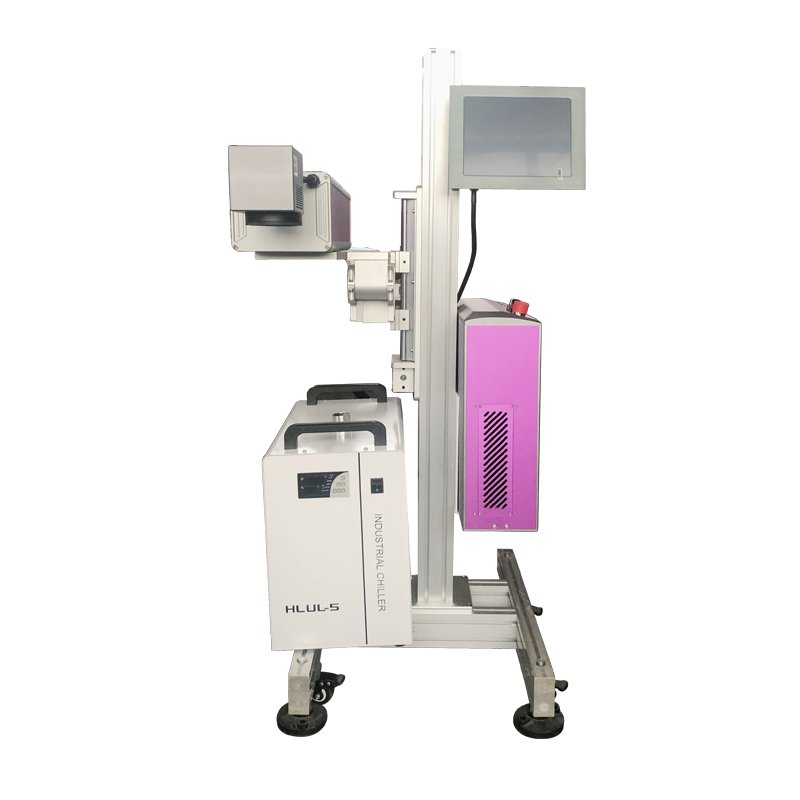

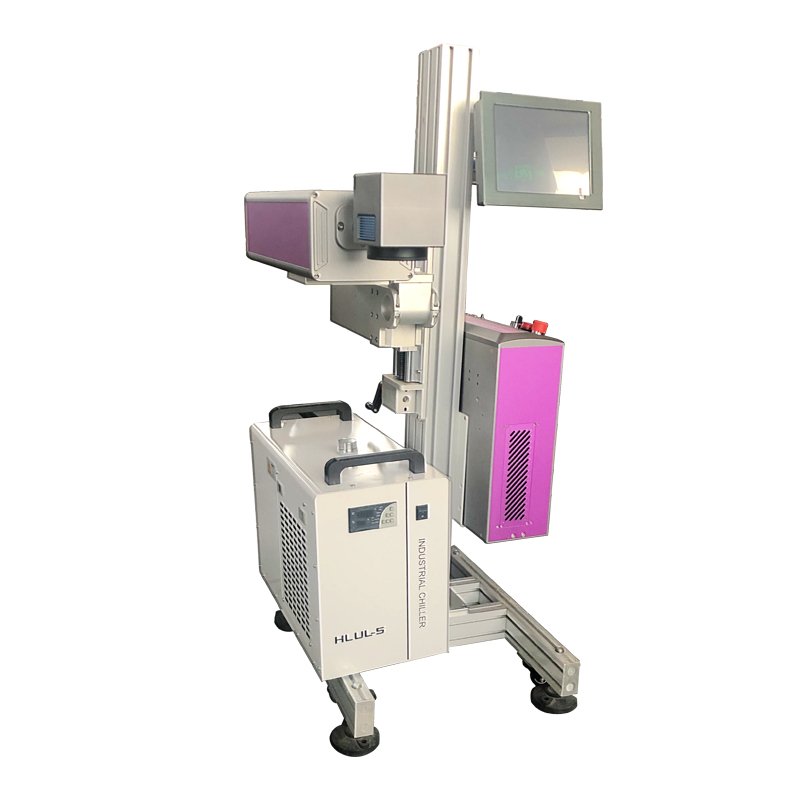

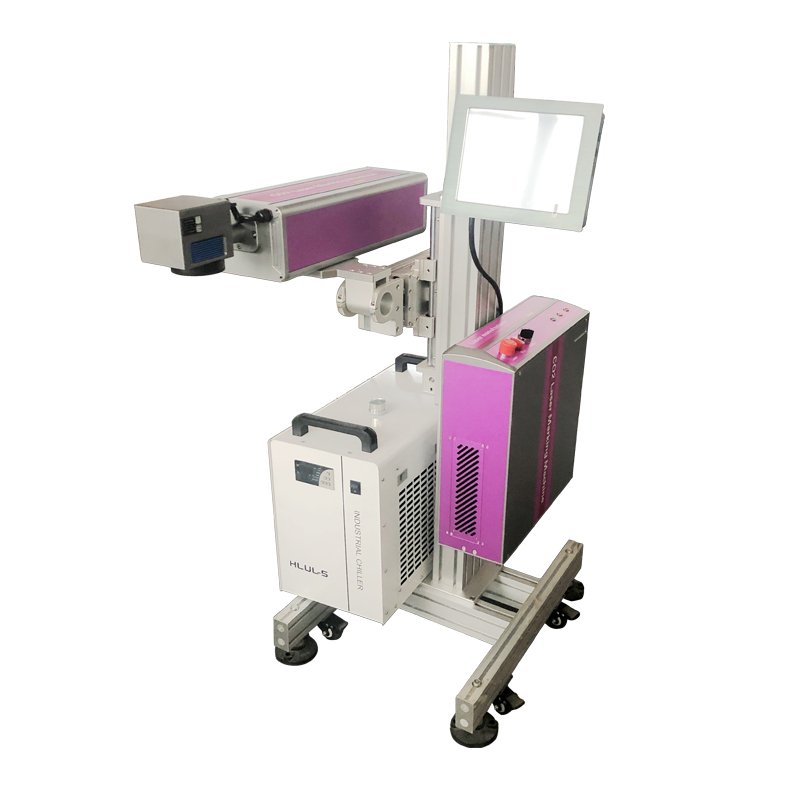

SCIENCEWAY UV FLY LASER MARKING MACHINE
The SCIENCEWAY UV Laser Marking Machine is a high-precision, cold-processing laser system designed for ultra-fine and damage-free marking. Utilizing a 355 nm ultraviolet laser, it delivers highly accurate, high-contrast marks on heat-sensitive and delicate materials such as plastics, glass, ceramics, and coated metals.
Product Overview
The SCIENCEWAY UV Laser Marking Machine is a
high-precision, cold-processing laser system designed for ultra-fine and
damage-free marking. Utilizing a 355 nm ultraviolet laser, it delivers highly
accurate, high-contrast marks on heat-sensitive and delicate materials such as
plastics, glass, ceramics, and coated metals. The UV laser’s short wavelength
ensures minimal thermal impact, making it ideal for applications requiring
non-contact, high-resolution engraving without deformation or discoloration.
This machine is widely used in industries like electronics, medical devices,
cosmetics packaging, and microelectronics for marking QR codes, serial numbers,
logos, and traceability data with extreme clarity and permanence.
Specifications
| Laser Type | UV Laser |
| Laser Wavelength | 355 nm (Ultraviolet) |
| Available Power Options | 3W / 5W / 10W |
| Marking Area | 100 × 100 mm (Optional: 70×70 mm to 200×200 mm) |
| Marking Speed | Up to 8,000–10,000 mm/s |
| Minimum Line Width | 0.01 mm |
| Minimum Character Size | 0.15 mm |
| Repeat Positioning Accuracy | ±0.002 mm |
| Marking Depth | 0.01 – 0.5 mm (depends on material) |
| Cooling Method | Air Cooling (Standard) / Water Cooling (Optional) |
| Beam Quality (M²) | < 1.2 (High beam focus for fine detail) |
| Supported Formats | PLT, BMP, JPG, DXF, AI, etc. |
| Compatible Software | EzCAD2 / EzCAD3 |
| Control Interface | USB (Standard), optional LAN |
| Power Supply | 220V / 50–60Hz, Single Phase |
| Machine Lifespan | ≥ 30,000 hours |
| Operating Temperature | 15 °C – 35 °C |
| Humidity Range | ≤ 80%, non-condensing |
| Optional Accessories | Rotary Fixture, X-Y Table, Smoke Extractor |
