SCINECEWAY TIJ PRINTER DUAL HEAD 25MM

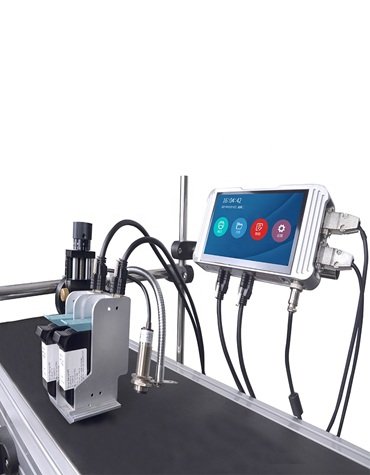

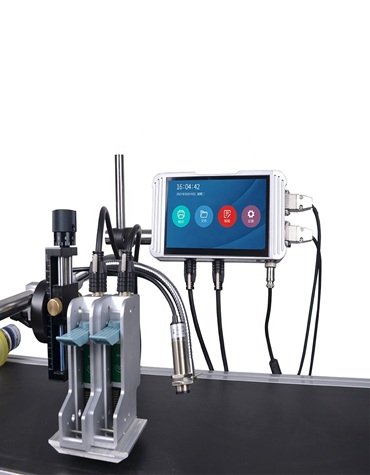

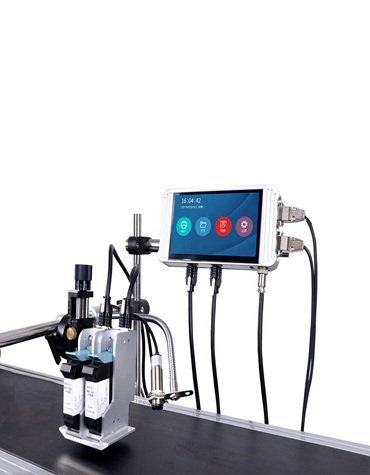

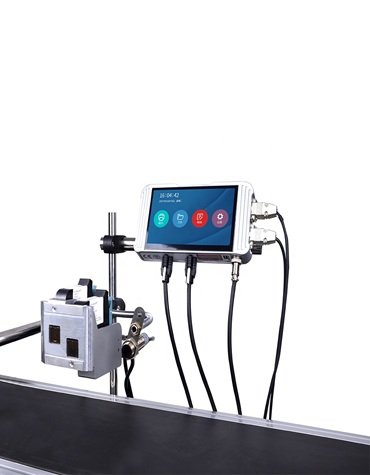

The SCIENCEWAY Dual Head TIJ Printer 25 mm is an industrial-grade thermal inkjet coding solution designed for high-volume and wide-area printing applications.
Product Overview
The SCIENCEWAY Dual Head TIJ
Printer 25 mm is an industrial-grade thermal inkjet coding
solution designed for high-volume and wide-area printing applications. It
features two synchronized 12.7 mm print heads that combine to deliver a
seamless 25.4 mm print height, making it ideal for large-format text, barcodes,
logos, and QR codes. Engineered for speed and precision, the printer supports
high-resolution output on various surfaces including cartons, metals, plastics,
and pipes. With a robust build, intuitive touchscreen control, and compatibility
with fast-drying multi-color HP ink cartridges, it ensures continuous,
maintenance-free operation in demanding production environments.
Specifications
| Print Technology | Thermal Inkjet (TIJ 2.5 – Dual Heads) |
| Combined Print Height | Up to 25.4 mm (2 × 12.7 mm heads) |
| Print Resolution | 40 to 600 dpi (adjustable) |
| Printing Speed | Up to 120 meters per minute |
| Supported Content | Text, logos, barcodes (1D/2D), QR codes, dates, batch numbers |
| Display | 7″ or 10″ full-color touchscreen |
| Ink Compatibility | Water-based, solvent-based, UV-curable inks |
| Ink Colors | Black, white, red, blue, yellow, green |
| Control Interface | USB input, encoder, photoelectric sensor |
| Language Support | Multilingual (English, Arabic, French, etc.) |
| Message Storage | 1000+ messages (internal + USB export/import) |
| Build Material | Industrial-grade aluminum alloy |
| Throw Distance | 2–5 mm (optimal printing gap) |
| Operating Temperature | 0°C to 45°C |
| Humidity Range | 30% to 80% RH (non-condensing) |
| Power Supply | AC 100–240V / 50–60 Hz |
| Head Dimensions | Approx. 200 × 135 × 128 mm |
