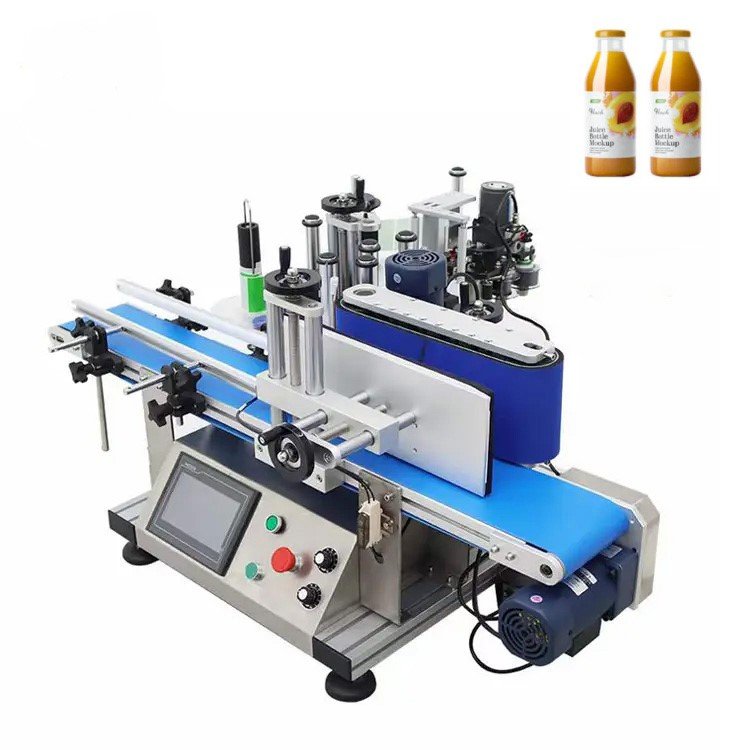

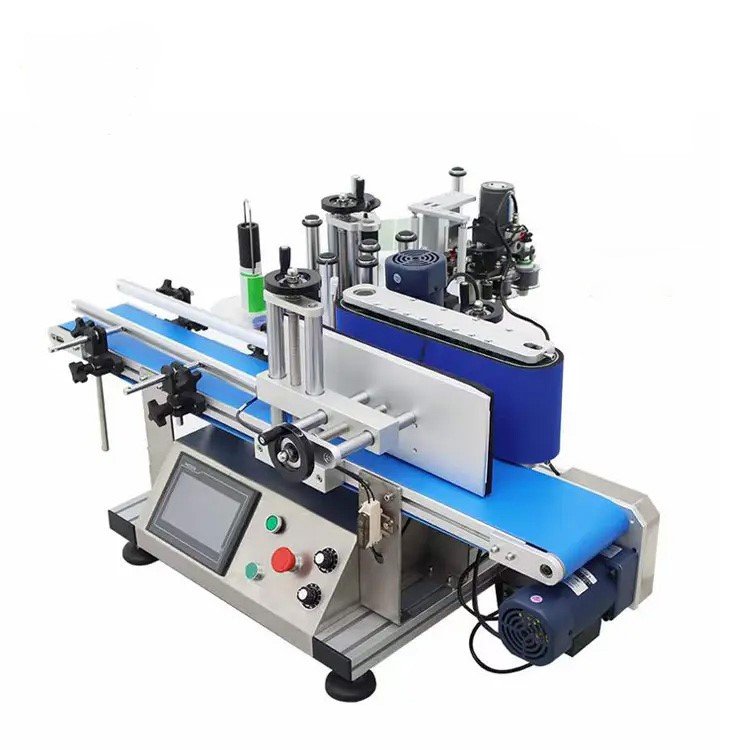

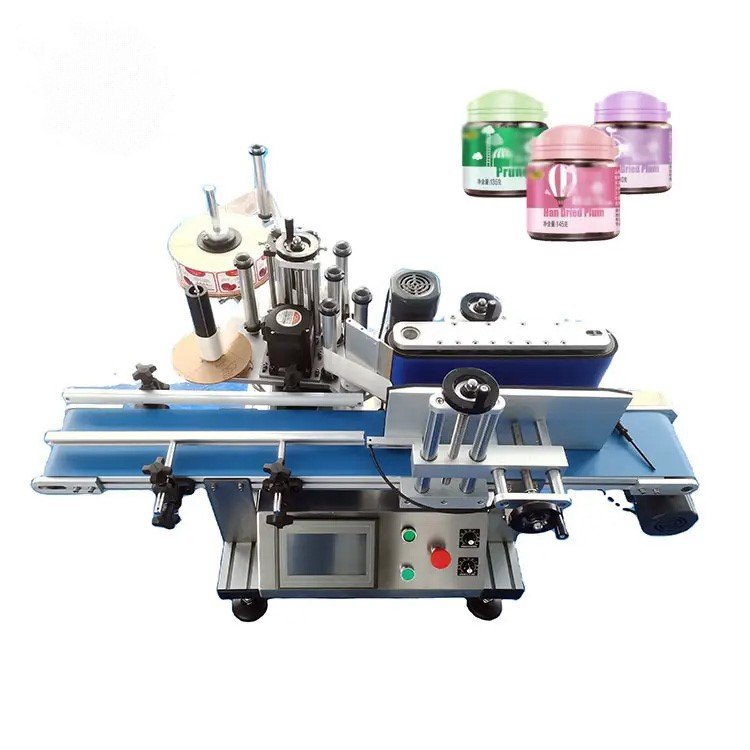

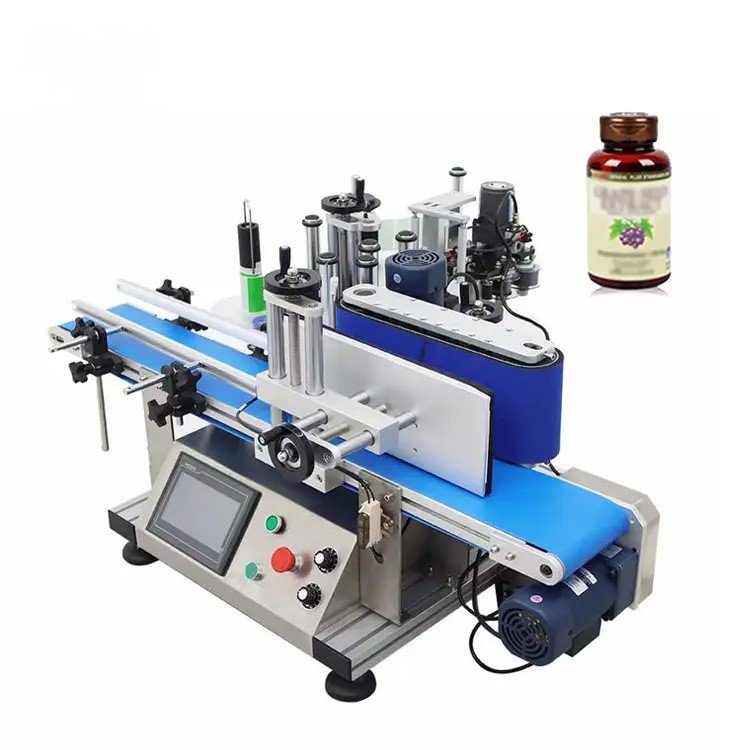

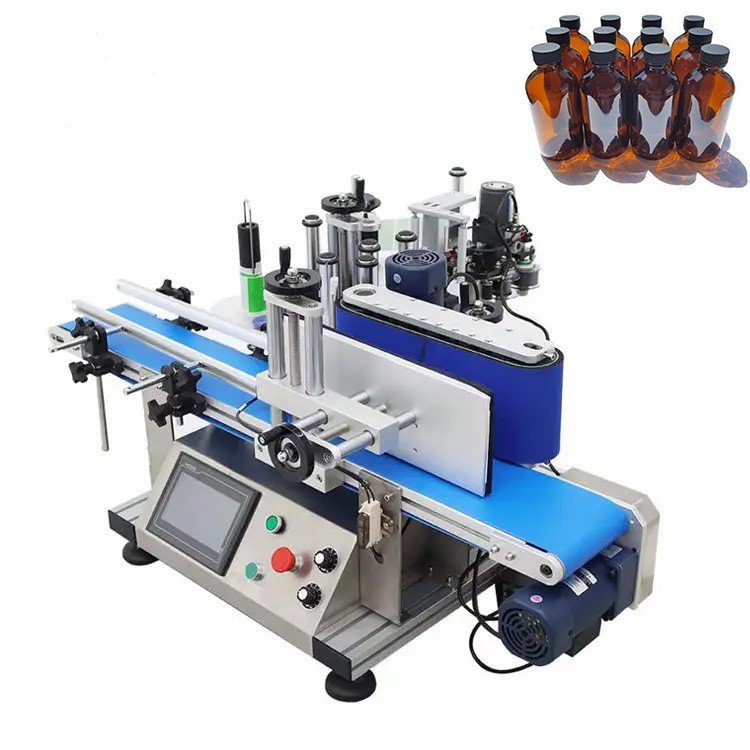

SCIENCEWAY FULLY AUTOMATIC LABELING MACHINE
The SCIENCEWAY Fully Automatic Bottle Labeling Machine is a cutting-edge labeling solution tailored for high-speed, high-volume production environments.
Product Overview
The SCIENCEWAY
Fully Automatic Bottle Labeling Machine is a cutting-edge labeling solution
tailored for high-speed, high-volume production environments. Built with
intelligent automation and robust engineering, it delivers flawless labeling
performance on round, square, or flat bottles—with minimal human
intervention.
Whether you're in the pharmaceutical, beverage, cosmetic, or chemical industry, this machine ensures maximum labeling accuracy, unmatched consistency, and production-line efficiency. Its sleek stainless-steel design, combined with an intuitive PLC touch-screen interface, makes it the perfect blend of power, reliability, and ease of use.
Specifications
| Machine Type | Fully Automatic Bottle Labeling Machine |
| Labeling Speed | 60–200 bottles per minute (depending on bottle size) |
| Labeling Accuracy | ±1 mm |
| Bottle Types | Round, Square, Flat bottles |
| Bottle Diameter Range | 25–120 mm |
| Label Size | Width: 20–150 mm Length: 30–300 mm |
| Label Roll Size | Inner Diameter: ≥75 mm Outer Diameter: ≤300 mm |
| Power Supply | 220V / 50Hz (or customized) |
| Control System | PLC with Touchscreen HMI |
| Drive System | Stepper/Servo motor driven |
| Sensor System | Optical fiber label and bottle detection sensors |
| Conveyor Speed | Adjustable (via control panel) |
| Frame Material | Stainless Steel 304 / Aluminum Alloy |
| Machine Dimensions | Approx. 2000 × 1200 × 1500 mm |
| Machine Weight | Approx. 250–300 kg |
| Optional Add-ons | Date coder, barcode printer, top/bottom/dual side labeler |
| Warranty | 1 Year |
